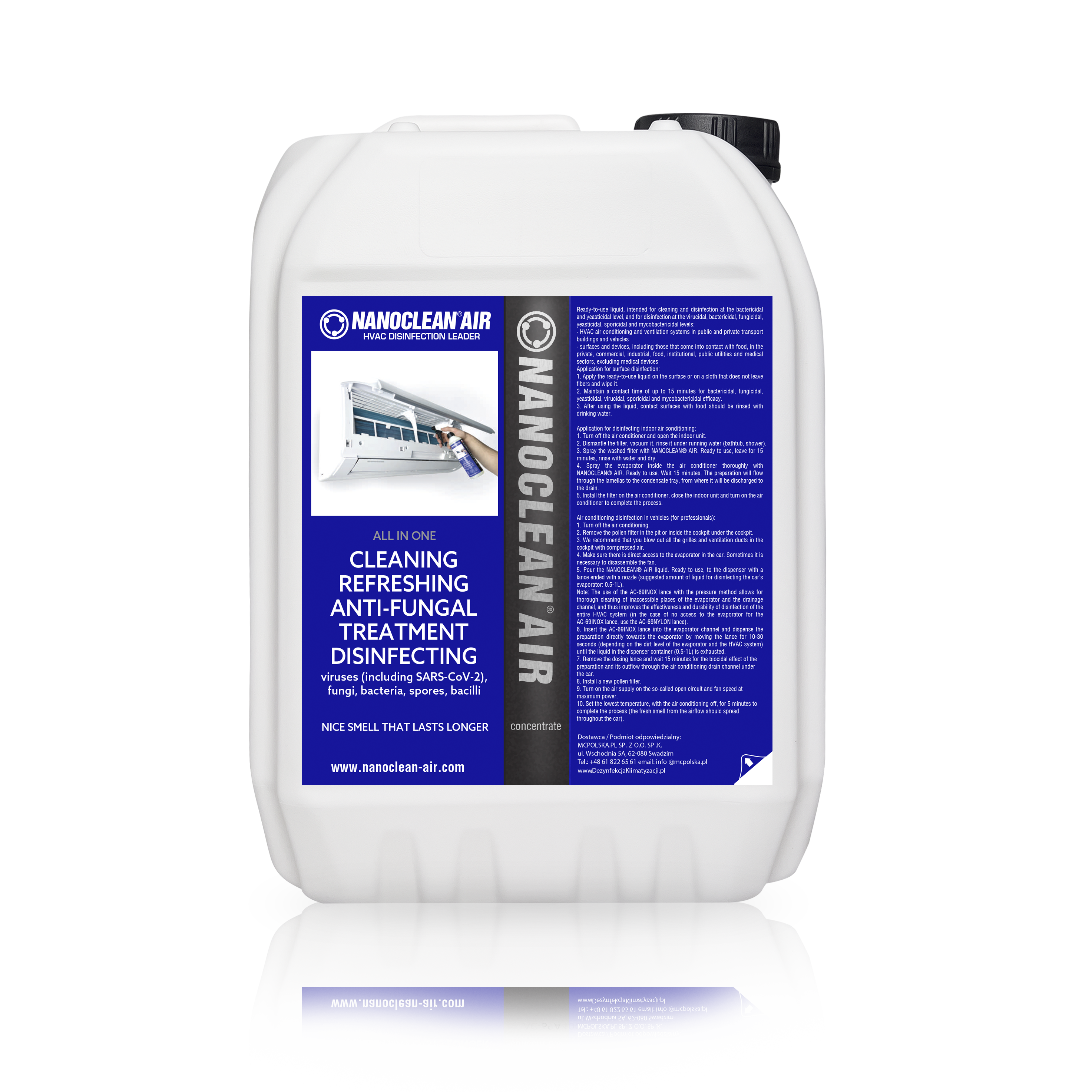

NANOCLEAN® AIR CONCENTRATE

DESCRIPTION APPLICATION HOW TO USE TESTS PACKAGE

A NEW STANDARD OF SAFETY IN HVAC SYSTEMS

ALL IN ONE

CLEANING, REFRESHING, ANTI-FUNGAL TREATMENT, DISINFECTING, NICE SMELL THAT LASTS LONGER

100% FRESHNESS.
Removes unpleasant odours and leaves a nice smell that lasts longer.

100% RELIABILITY AND EFFECTIVENESS.
Confirmed by tests according to EU standards: EN1040, EN13727, EN1276, EN13697, EN13623, EN1275, EN1650, EN14476, EN13704, EN14348

100% SATISFIED CLIENTS.
Thanks to effective cleaning and disinfection.

100% SAFETY.
FULL BIOCIDAL SPECTRUM:
viruses, fungi, bacteria, spores, mycobacteria. Kills legionella pneumophila in 1 minute.

100% CLEANING EFFICIENCY.
Thanks to multi-ingredient active basis.

100% COMFORT AND SAFETY FOR USERS.
Thanks to innovative safety formula.

FULL BIOCIDAL SPECTRUM

The only concentrate on the market for cleaning, refreshing, de-fumigation and disinfection of air conditioning evaporators and other HVAC ventilation and refrigeration equipment in buildings and any vehicles with FULL SPECTRUM OF ACTION (5%):Viruses, Bacteria, Fungi, Mycobacteria, Spores up to 15 minutes.

It effectively removes all pollutants that can affect the quality of the air itself. Leaves a refreshing scent.
Can be used in ultrasonic equipment.

Use biocides safely. Always read the label and product information before use.

BEFORE

AFTER

DESCRIPTION

AIR-CONDITIONING CLEANING & REFRESHMENT

It effectively removes all pollutants that can affect the quality of the air itself.

Permanently eliminates unpleasant fungal smell and unpleasant moisture odour.

Compatible with materials – ready-to-use formulation is safe for most metals, painted surfaces, rubbers, plastics, fabrics.

After evaporation, it leaves a dry and clean surface that resists dust attraction.

AIR-CONDITIONING FUMIGATION AND DISINFECTION

The only preparation with a FULL BIOCIDAL SPECTRUM (Viruses, Bacteria, Fungi, Mycobacteria, Spores up to 15 minutes), guarantees 100% SAFETY.

Removes Legionella pneumophila in 1 minute.

Effectiveness confirmed by tests according to European Norms:
EN14476, EN13697, EN1650, EN1275, EN1276, EN13727, EN1040, EN13623, EN13704, EN14348.

Biocidal product sales permit no. 7420/ 18.

Replaces car interior ozone disinfection with full biocidal spectrum by fogging with NANOCLEAN® AIR with AC-99FUMI head (dry mist). Application time approx. 15 – 30 seconds. Disinfection time 5-15 minutes.

A new standard of safety against airborne infections and contagions.

SAVING TIME AND MONEY

Refreshes, cleans, fumigates, disinfects with full spectrum.

The most economical disinfection. Concentrate applied with water at a concentration of 5% (1:20). 1L of the concentrate is 20L of ready to use solution.

CUSTOMER SATISFACTION

Pleasant, long-lasting fragrance.

Safe work – no allergies or irritations.

No risk of fire during storage – non-flammable, water-based product.

Does not contain acids, aldehydes, phenols and their derivatives or organic solvents.

Full customer satisfaction – no complaints.

Featured by Auto Expert magazine in 2019 and 2020.

APPLICATION

Cleaning, refreshing, fumigation and disinfection of air conditioning and ventilation:

Air conditioner evaporators

Air handling units

Air coolers

Heat exchangers

Ventilation ducts

Fan-coils

Recuperators

Air distribution channels in heat pumps

Cleaning of home air conditioners

Air conditioning and refrigeration equipment in the hvac industry

Passenger cars

Trucks

Truck-tractors

Buses

Trams

Trains

Tube trains

Planes

Agricultural machinery

Construction machinery

Can be used in ultrasonic equipment

All surfaces in the installer’s workplace, including the food and medical industry (the product is approved for disinfection of surfaces in direct contact with food).

HOW TO USE

PREPARING 5% WORKING SOLUTION:

Prepare a 5% ready to use working solution from NANOCLEAN® AIR concentrate and water.

e.g.: 50ml concentrate + 950ml water = 1L ready to use solution (RTU).

Mix the solution in proportions according to the table below:

Concentration of preparation [%]	Dilution ratio	Amount of working solution 5%:	0.5 L	1 L	5 L	10 L	20 L	25 L	100 L	200 L
5%	1 : 20	Concentrate amount:	25 ml	50 ml	250 ml	500 ml	1000 ml	1250 ml	5 L	10 L

APPLICATION FOR DISINFECTING INDOOR AIR CONDITIONING:

1

Turn off the air conditioner and open the indoor unit.

2

Dismantle the filter, vacuum it, rinse it under running water (bathtub, shower).

3

Prepare a 5% working solution with NANOCLEAN® AIR Concentrate and water according to the table and pour it into the applicator, eg hand sprayer.

4

Spray the washed filter with the 5% NANOCLEAN® AIR working solution. Leave the concentrate for 15 minutes, rinse with water and dry.

5

Thoroughly spray the evaporator inside the air conditioner with the 5% NANOCLEAN® AIR Concentrate working solution. Wait 15 minutes. The preparation will flow through the lamellas to the condensate tray, from where it will be discharged to the drain.

6

Install the filter on the air conditioner, close the indoor unit and turn on the air conditioner to complete the process.

AIR CONDITIONING DISINFECTION IN VEHICLES (FOR PROFESSIONALS):

1

Turn off the air conditioning.

2

Remove the pollen filter in the pit or inside the cockpit under the cockpit.

3

We recommend that you blow out all the grilles and ventilation ducts in the cockpit with compressed air.

4

Make sure there is direct access to the evaporator in the car. Sometimes it is necessary to disassemble the fan.

5

Pour the 5% solution prepared with NANOCLEAN® AIR Concentrate and water to the dispenser with a lance ended with a nozzle (suggested amount of liquid for disinfecting the car’s evaporator: 0.5-1L of working solution).

6

Note: The use of the AC-99INOX lance with the pressure method allows for thorough cleaning of inaccessible places of the evaporator and the drainage channel, and thus improves the effectiveness and durability of disinfection of the entire HVAC system (in the case of no access to the evaporator for the AC-99INOX lance, use the AC-99NYLON lance).

7

Insert the AC-99INOX lance into the evaporator channel and dispense the preparation directly towards the evaporator by moving the lance for 10-30 seconds (depending on the dirt level of the evaporator and the HVAC system) until the liquid in the dispenser container (0.5-1L) is exhausted.

8

Remove the dosing lance and wait 15 minutes for the biocidal effect of the preparation and its outflow through the air conditioning drain channel under the car.

9

Install a new pollen filter.

10

Turn on the air supply on the so-called open circuit and fan speed at maximum power.

11

Set the lowest temperature, with the air conditioning off, for 5 minutes to complete the process (the fresh smell from the airflow should spread throughout the car).

Note: We recommend disinfecting the air conditioning at least twice a year or every 20,000 km.

APPLICATION FOR SURFACE DISINFECTION:

1

Prepare a 5% working solution and apply the ready-to-use 5% solution to the surface or a lint-free cloth and wipe.

2

Allow contact time up to 15 minutes to ensure bactericidal, fungicidal and yeasticidal effectiveness, virucidal, sporicidal and tuberculocidal.

3

After using the preparation, contact surfaces with food should be rinsed with drinking water.

SAFETY

Before use, please read the product label, its TDS and SDS.

TESTS

GROUP:	STANDARD:	ORGANISM:	DISINFECTION TIME:
Bacteria	EN 13697	Pseudomonas aeruginosa ATCC 15442	5 minutes
				Staphylococcus aureus ATCC 6538	5 minutes
				Escherichia coli ATCC 10536	5 minutes
				Enterococcus hirae ATCC 10541	5 minutes
Bacteria	EN 13623	Legionella pneumophila ATCC 33152	60 minutes
Bacteria	EN 1040	Legionella pneumophila ATCC 33152	1 minute
Bacteria	EN 1276	Legionella pneumophila ATCC 33152	1 minute
				Escherichia coli ATCC 10536	1 minute
				Pseudomonas aeruginosa ATCC 15442	1 minute
				Staphylococcus aureus ATCC 6538	1 minute
				Enterococcus hirae ATCC 10541	1 minute
Bacteria	EN 13727	Pseudomonas aeruginosa ATCC 15442	1 minute
				Staphylococcus aureus ATCC 6538	1 minute
				Enterococcus hirae ATCC 10541	1 minute
FUNGI	EN 13697	Candida albicans ATCC 10231	15 minutes
FUNGI	EN 13697			Aspergillus brasiliensis ATCC 16404 (Aspergillus Niger)	15 minutes
FUNGI	EN 1275	Candida albicans ATCC 10231	1 minute
FUNGI	EN 1650	Candida albicans ATCC 10231	5 minutes
SPORES	EN 13704	Bacillus subtilis ATCC6633	5 minutes
MYCOBACTERIA	EN 14348	Mycobactrium terrae DSM 43227	5 minutes
MYCOBACTERIA	EN 14348			Mycobacterium avium DSM 44157	5 minutes
VIRUSES	EN 14476	Adenovirus ATCC VR-5	5 minutes
VIRUSES	EN 14476	Murine Norovirus S99	5 minutes
VIRUSES	EN 14476	Poliovirus LSC -2ab	5 minutes
VIRUSES	EN 14476	Vaccinavirus ATCC-VR 1508	5 minutes
